Products & Services / Power Electronics

Power Supply

From Chip to Grid

Single-stop power solutions - isolated & non-isolated board-mounted converters, front-end AC/DC rectifiers and complete custom DC power systems for telecom, data centres and industrial applications.

AC-DCRectifiers
DC-DCConverters
SMPSBoard-mounted
DC SystemsTelecom / DataCentre

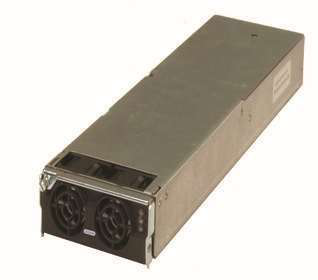

Front-end AC/DC rectifier power module
Front-End AC/DC Rectifier Module

AC-DC / DC-DC Converters, SMPS & Rectifiers

Single-stop power solutions - from chip to grid. Isolated & non-isolated board-mounted converters, front-end AC/DC rectifiers, and complete custom DC power systems for telecom, data centres and industrial applications.

From Chip to Grid

From Chip to Grid - Board-Mounted Power, Front-End AC/DC Conversion, Custom Rectifiers & DC Power Systems
>97%Peak Efficiency
85-530VAC Input Range
Up to 6kWPer Rectifier Module
-40 to 85°COperating Range

Board-Mounted Power - Non-Isolated (DLynx Family)

SeriesInput RangeOutputKey Features
DLynx / DLynx II / III3.0-14.4 VDC0.45-5.5 V, up to 160A (III)PMBus, tunable loop, master-satellite (III), high power density
ProLynx9-36 VDC3.0-18 V, up to ~12AUltra-wide input, auto-limit, rugged versions (105°C)
SlimLynx3.0-14.4 VDC0.45-5.5 V, up to ~12AUltra-low profile (2.9 mm), PMBus, tunable loop
TLynx2.4-16 VDC0.59-8 V, 30A/50A parallelableVery high efficiency, parallelable, OCP/OTP
Osprey Bus Converters40-60 VDC12 V, 1.3-2 kW>97% efficiency, DOSA quarter-brick, PMBus

Isolated, Regulated Board-Mounted Power

FamilyInput VoltageOutputMax Power / Efficiency
Hammerhead18-75 VDC3.3V, 5V, 12VUp to ~60W / ~90%
High-Power Barracuda36-75 VDCRegulated 12VUp to 128A / up to 96%
Low-Power Barracuda36-75 VDCRegulated 5V, 12VUp to 120W / 25A / up to 92%
Orca36-75 VDC16-57.6V adjustableUp to 450W / up to 94%

Front-End AC/DC Rectifiers

A broad range of hot-swappable, high-efficiency rectifiers with digital communication and active current sharing:

  • BP Series - 2000W, 1U, RS485
  • CAR Series - 800W to 3000W, 12/24/48/54V
  • CC Series - up to 96%, fanless conduction
  • CP Series - N+1 redundancy, hot-swap
  • CLP Series - 150W-600W compact
  • EP Series - 1U x 1U, hot-swappable
  • GP Series - 6000W, 3-phase
  • HPR Series - 2800W, Titanium efficiency
  • NE Series - 95.6% peak, -40 to 75°C
  • EV100/101 - EV DC fast charging, up to 360kW
  • MPE 2000 - Medical grade
  • IR Series - Industrial 1-/3-phase

Common Benefits

  • High and flat efficiency, peak up to 97%+
  • Redundant / parallel operation with active current sharing
  • Hot-pluggable and hot-swappable modules
  • PMBus / I2C / RS485 digital communication
  • Input, output and over-temperature protection (OVP/OCP/OTP)
  • Wide operating temperature range (-40°C to +85°C)
  • Compact 1U form factors, high power density
  • AC and DC input versions available
